S Houle Land Levelers

The Perfect Tool For Precision Land Forming

Also known as box blades, drag buckets, and laser scrapers, the SHoule Land Leveler has a replaceable blade, hydraulic lift, and can achieve side grades with the tilting basket. 4 different models come in sizes 8' to 24' with transport kits available for wider units.

Unique curved blade allows dirt to roll in the frame, increasing carrying capacity and preventing lifting
Patented G4 hitch design prevent wobble at high speeds
Optional scarifying teeth break hard ground, reducing HP required
Made in Canada

Features Models Videos

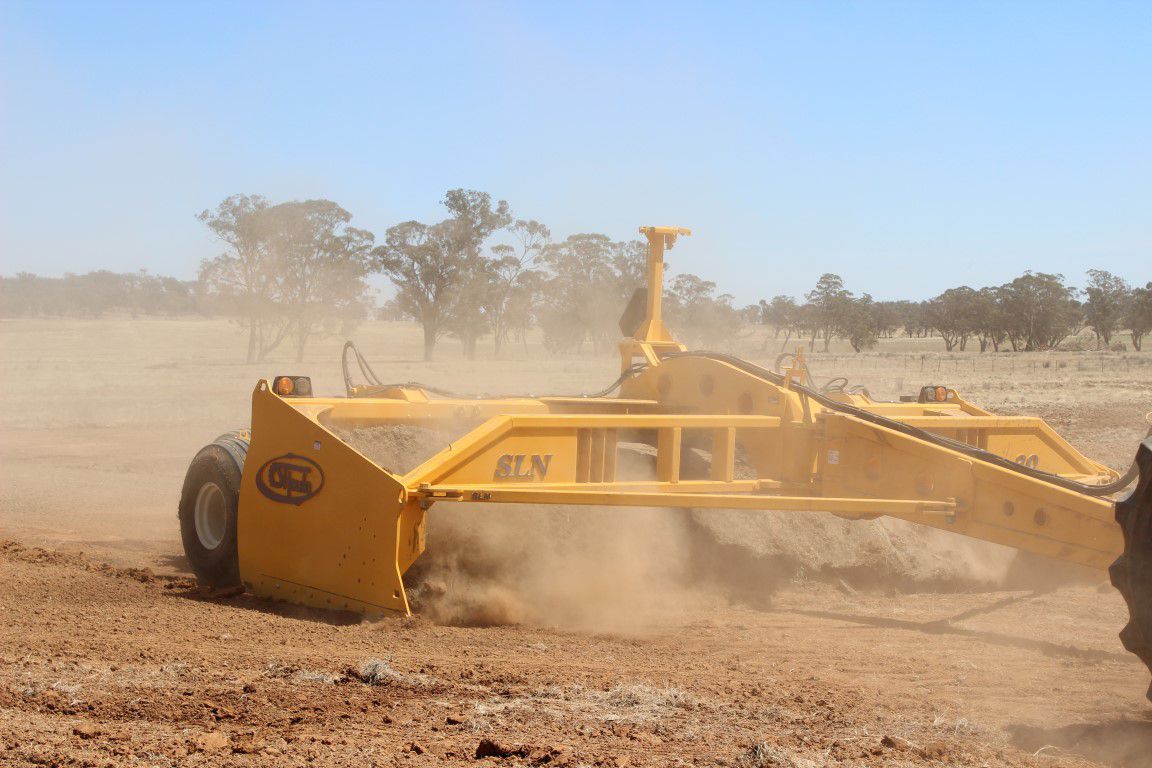

Unique Curved Frame

Different to other drag scrapers, the curved frame allows dirt to roll inside the basket. This increases the capacity while preventing lifting of the blade.

Precision Landforming

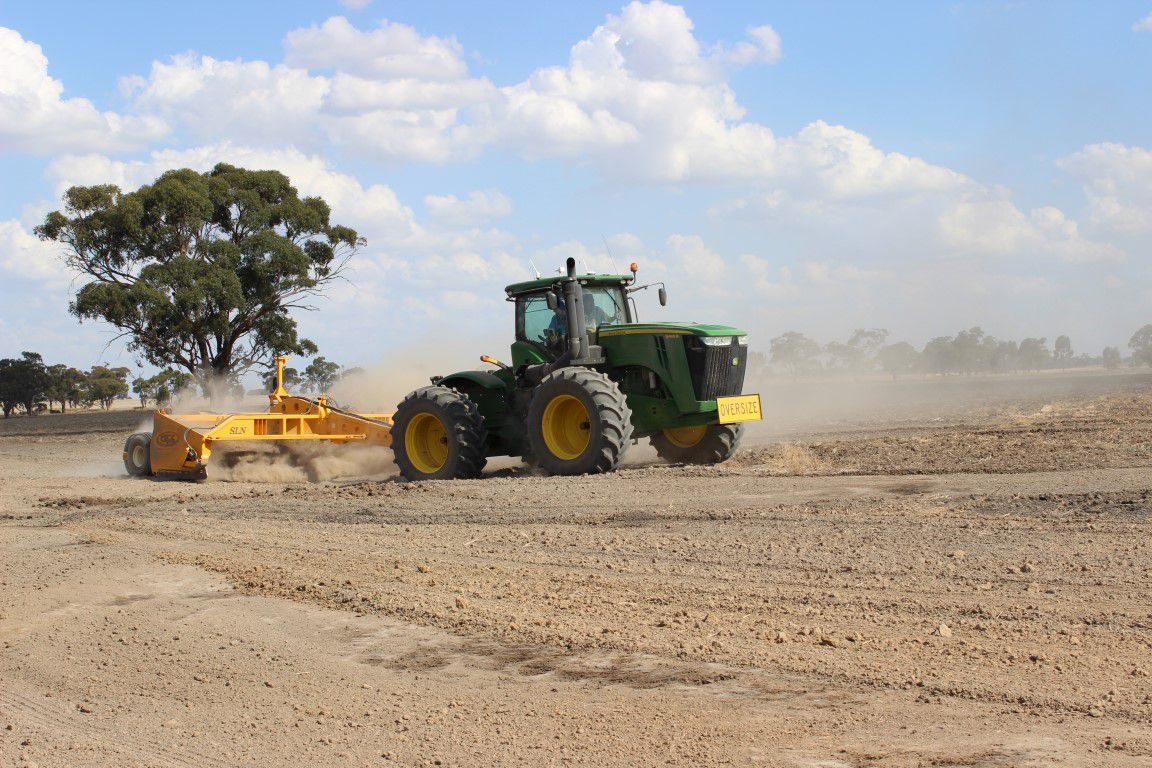

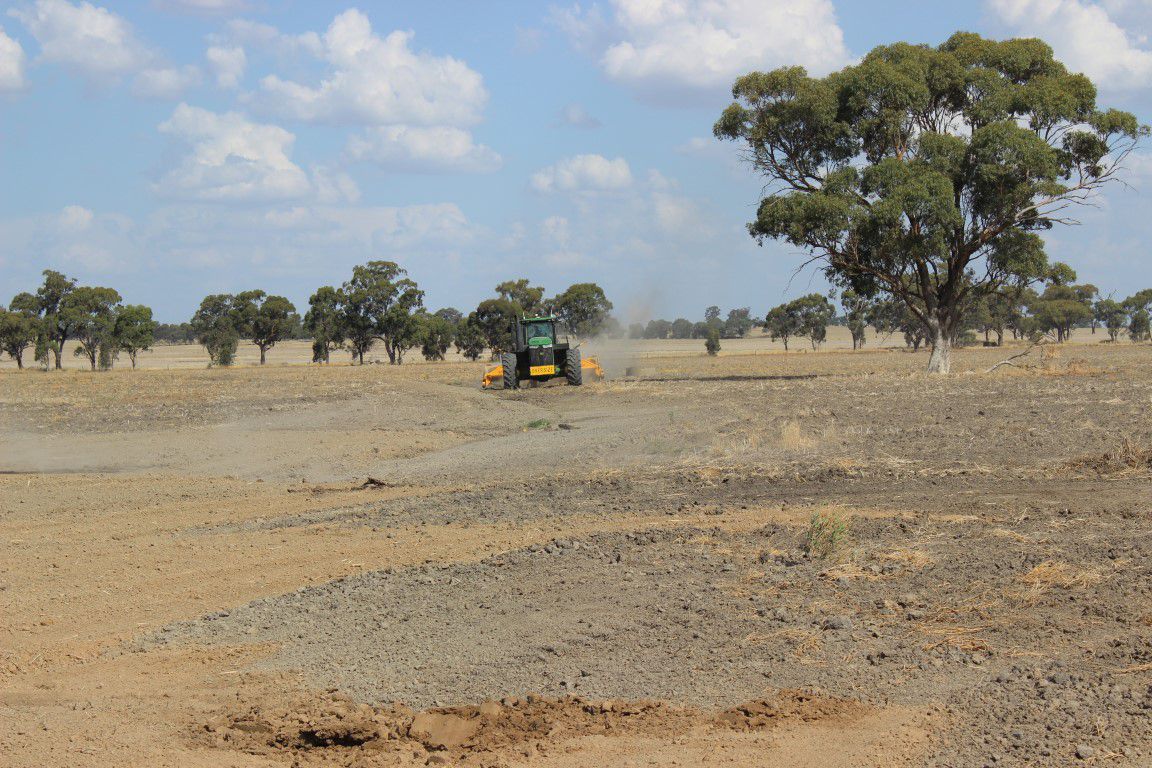

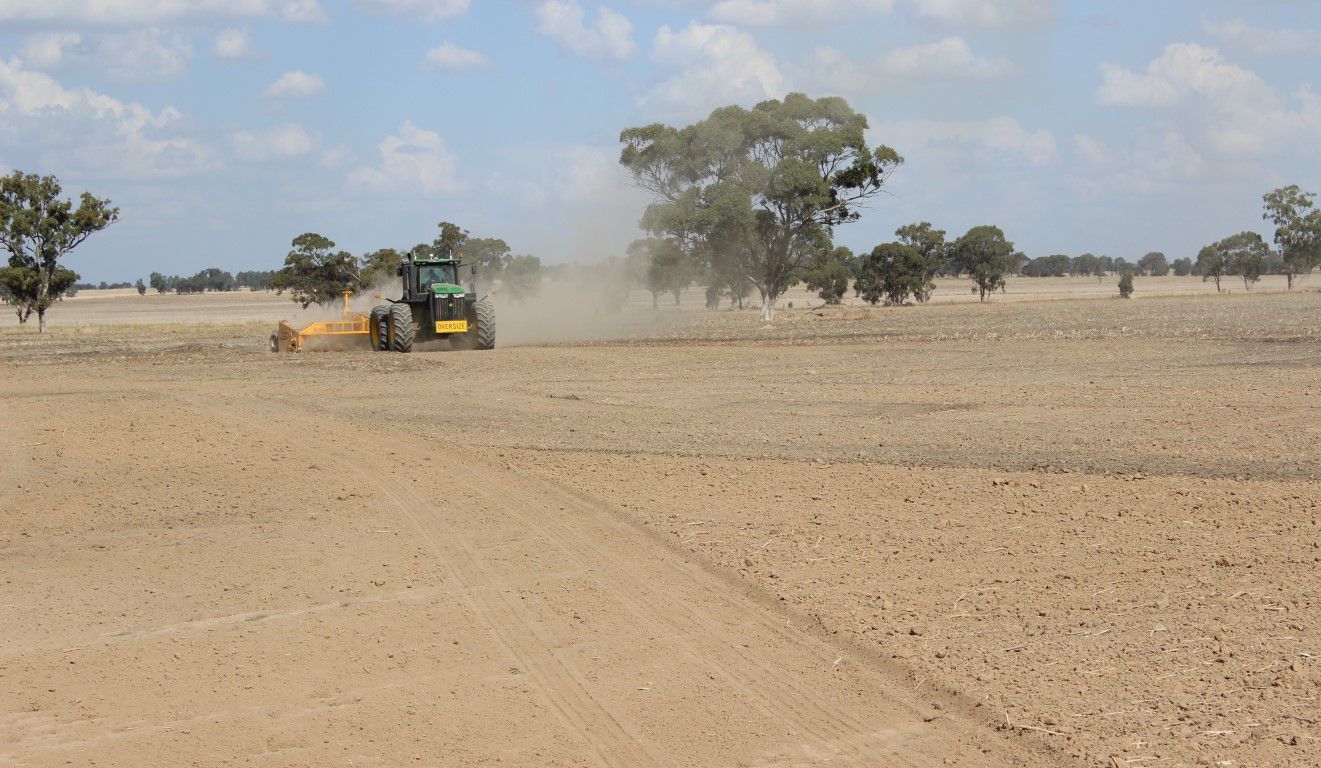

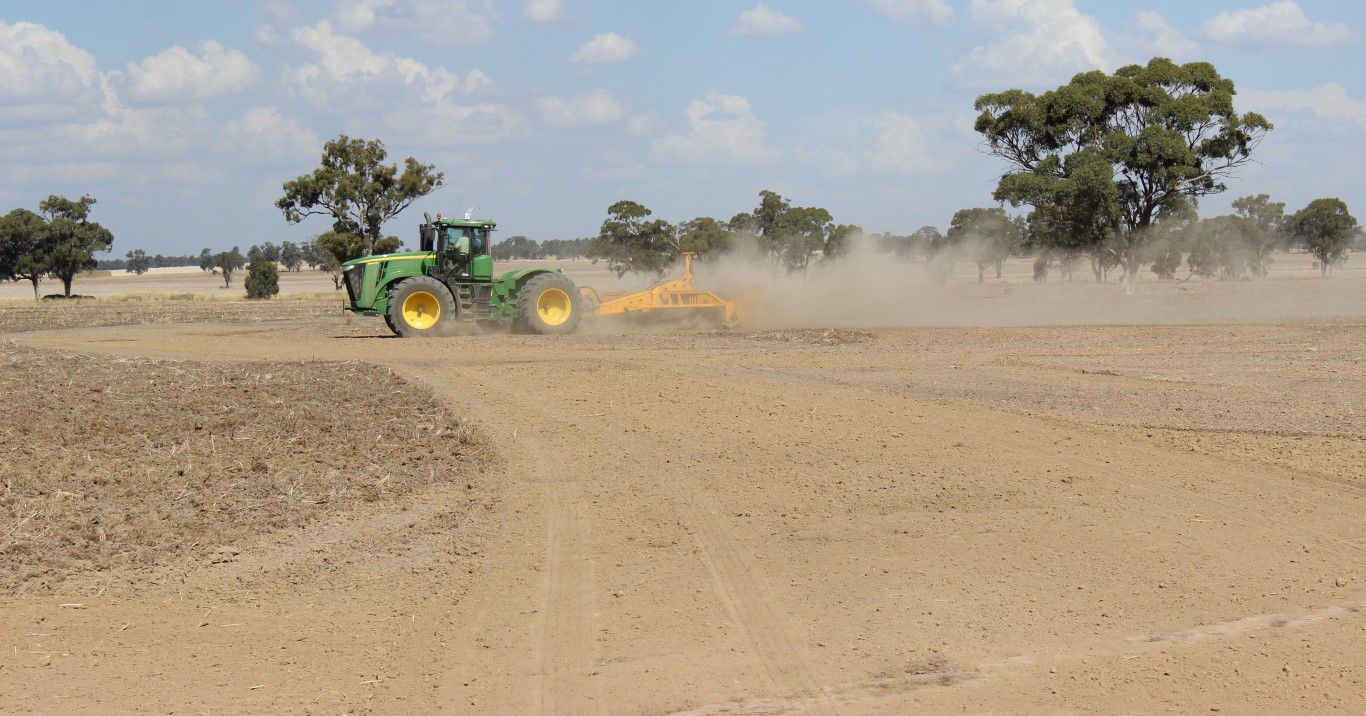

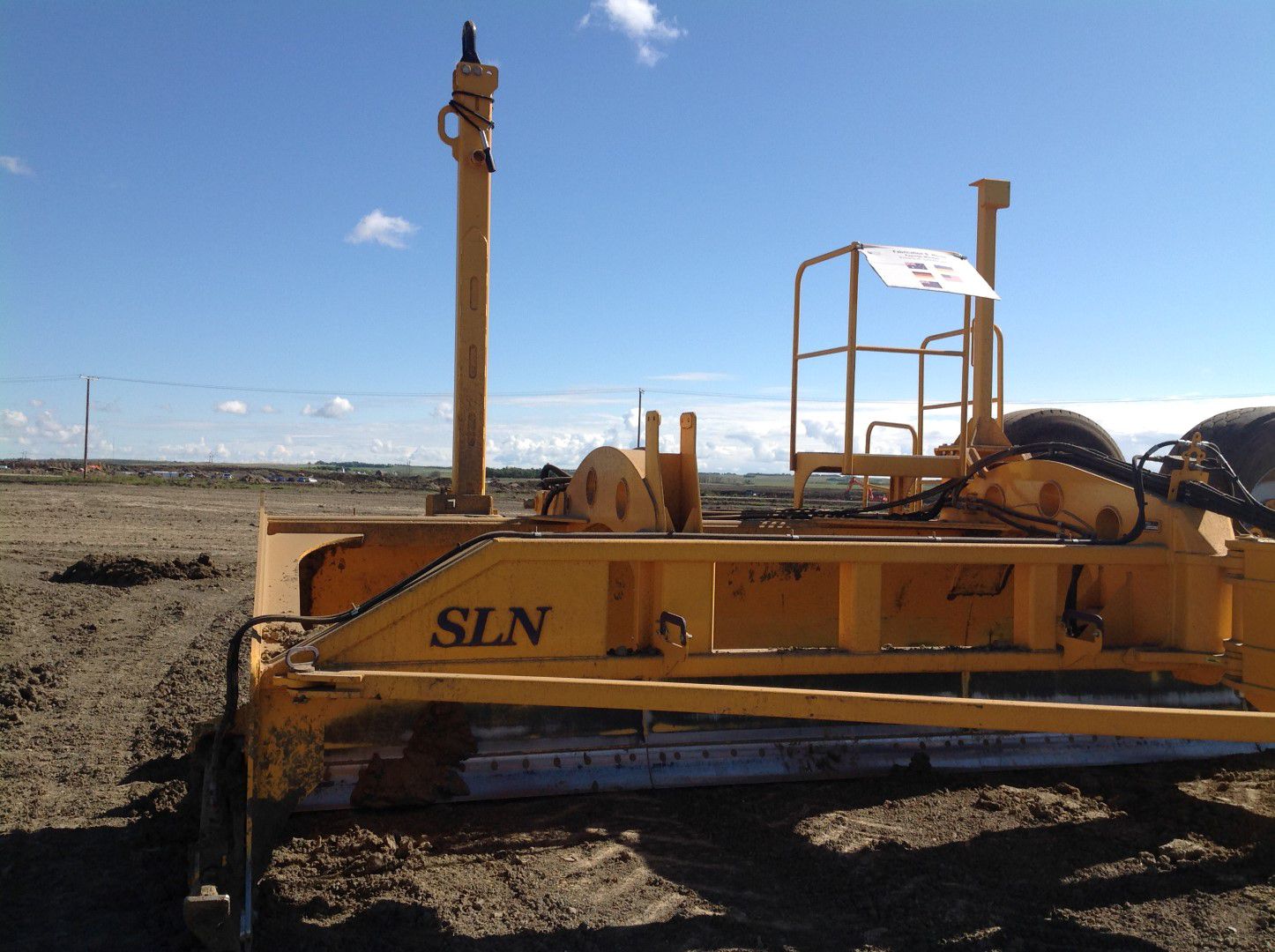

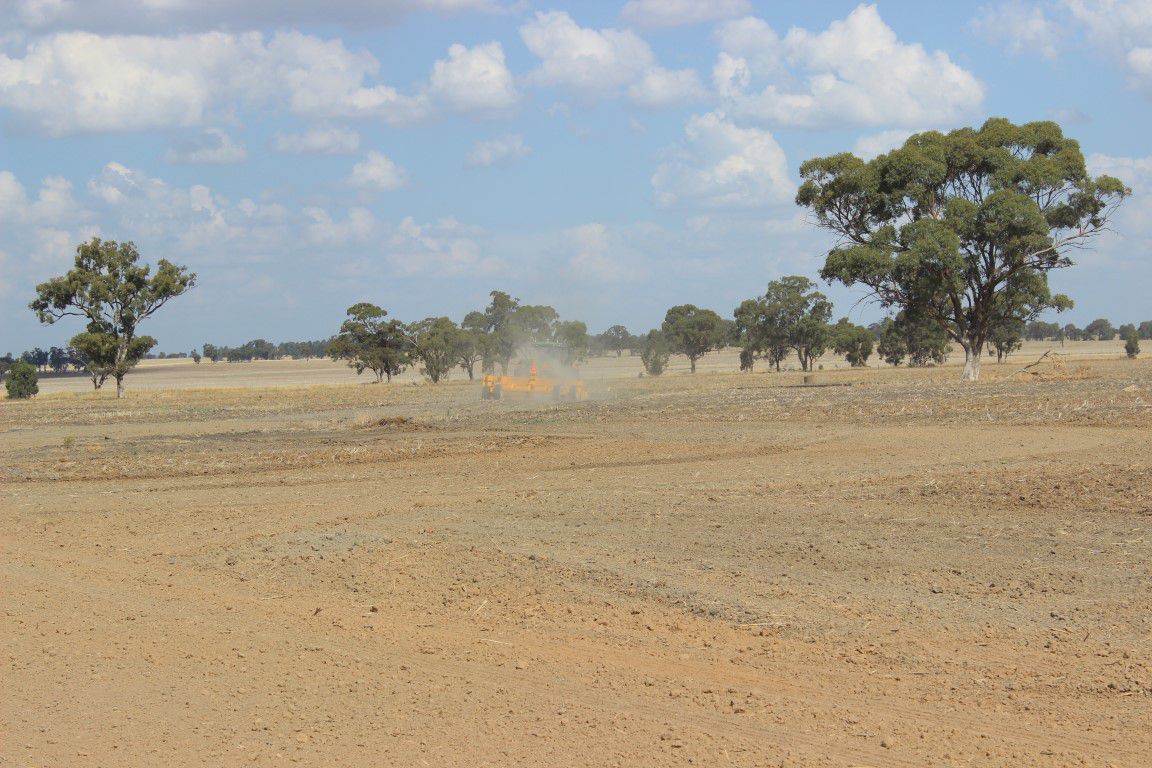

Optional Laser or GPS post for precision leveling allows mounting of Trimble, TopCon, John Deere iGrade and others. Ideal for agricultural use in irrigation maintenance and drainage.

Stabilizing Skid Shoes

Used for stabilizing the unit during high speed finish applications (15+ km/h)

Hydraulic Tilt

Hydraulic tilt system allows the blade to tilt about 12" (30 cm) and can be ordered for left, right, or both sides at once.

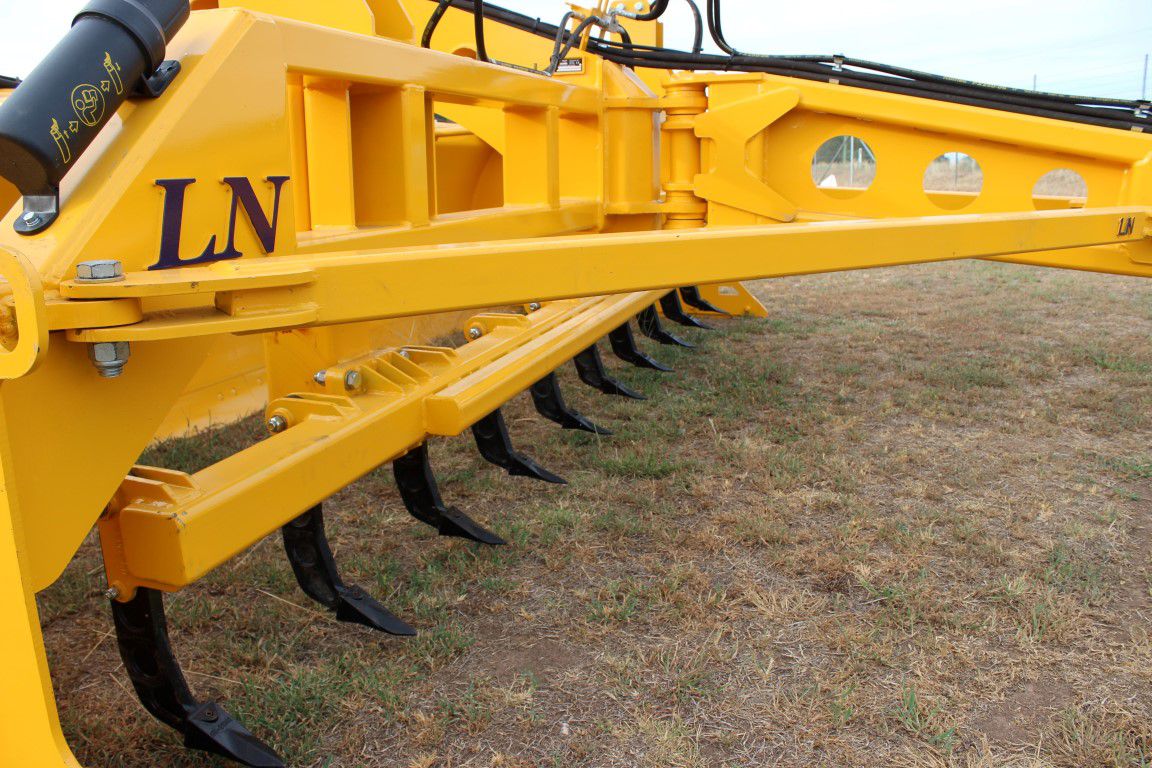

Scarifying Teeth

Optional scarifying teeth are hydraulically activated and available for breaking hard ground surface that help to reduce power requirements.

3 Model Ranges

Land levelers come in sizes from 8' to 24' wide in 3 different classes to suit your needs:

HLL: 8' - 12' (2.4m - 3.7m)

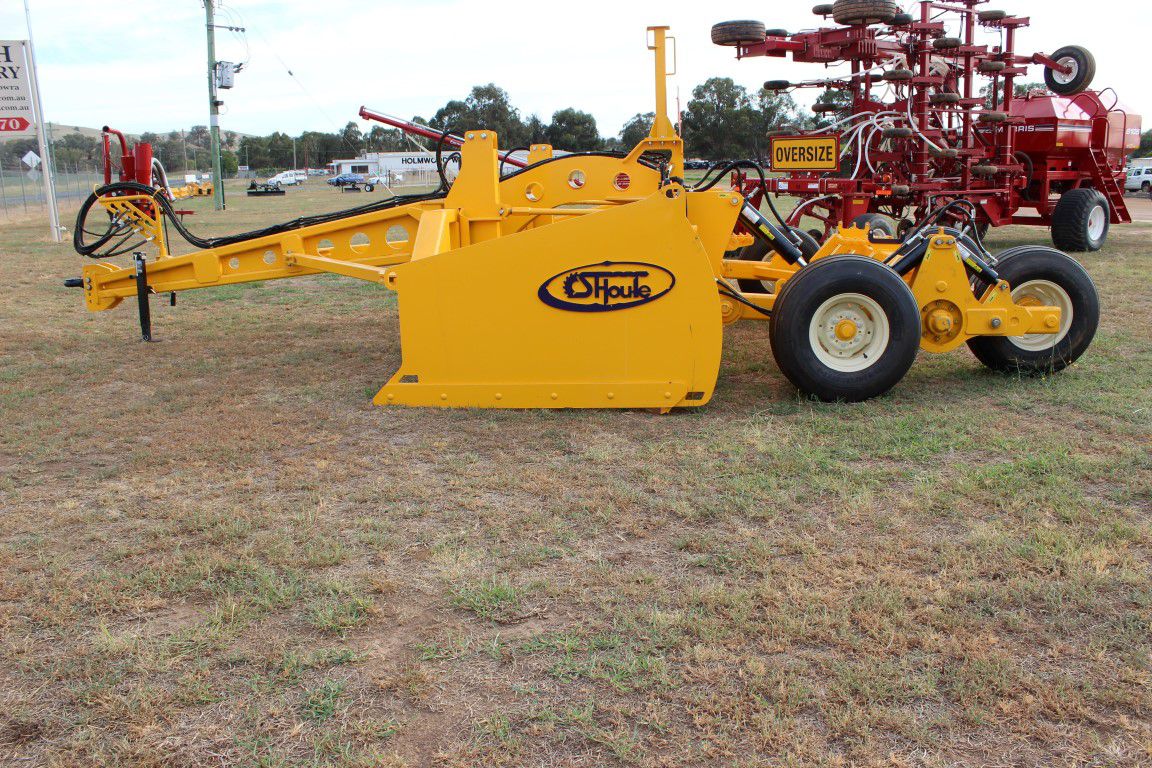

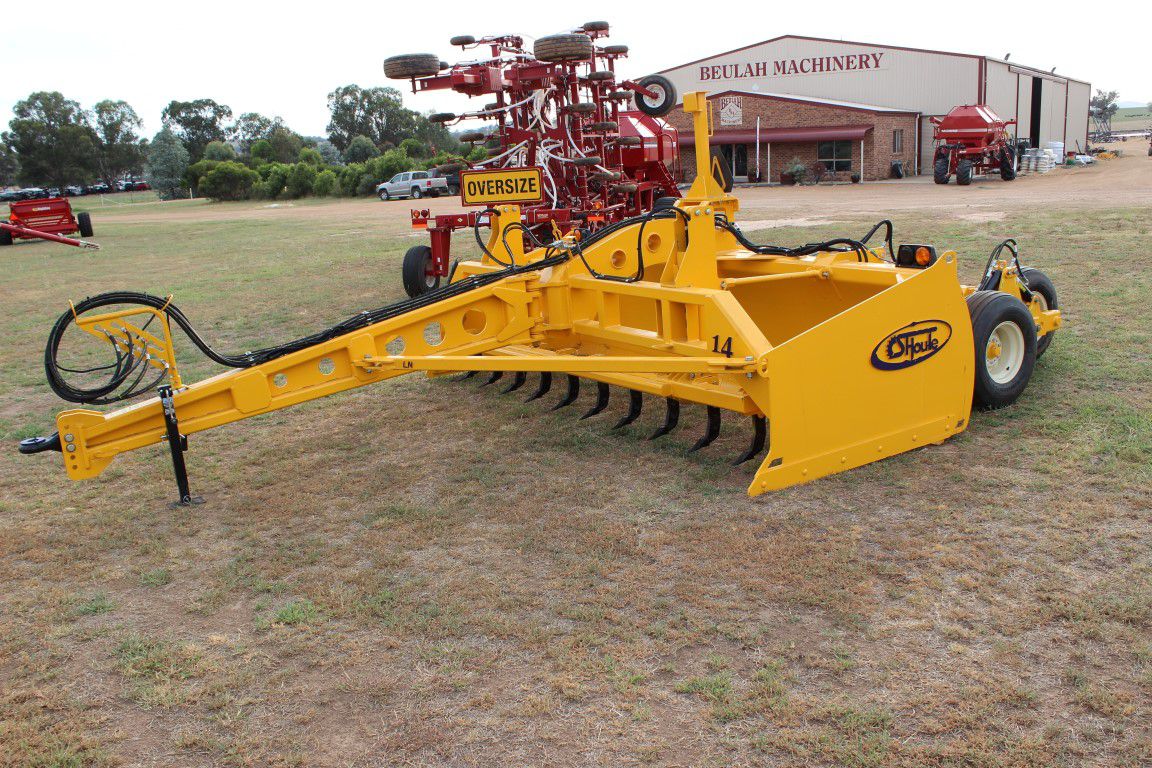

LN: 14' - 18' (4.3m - 5.5m)

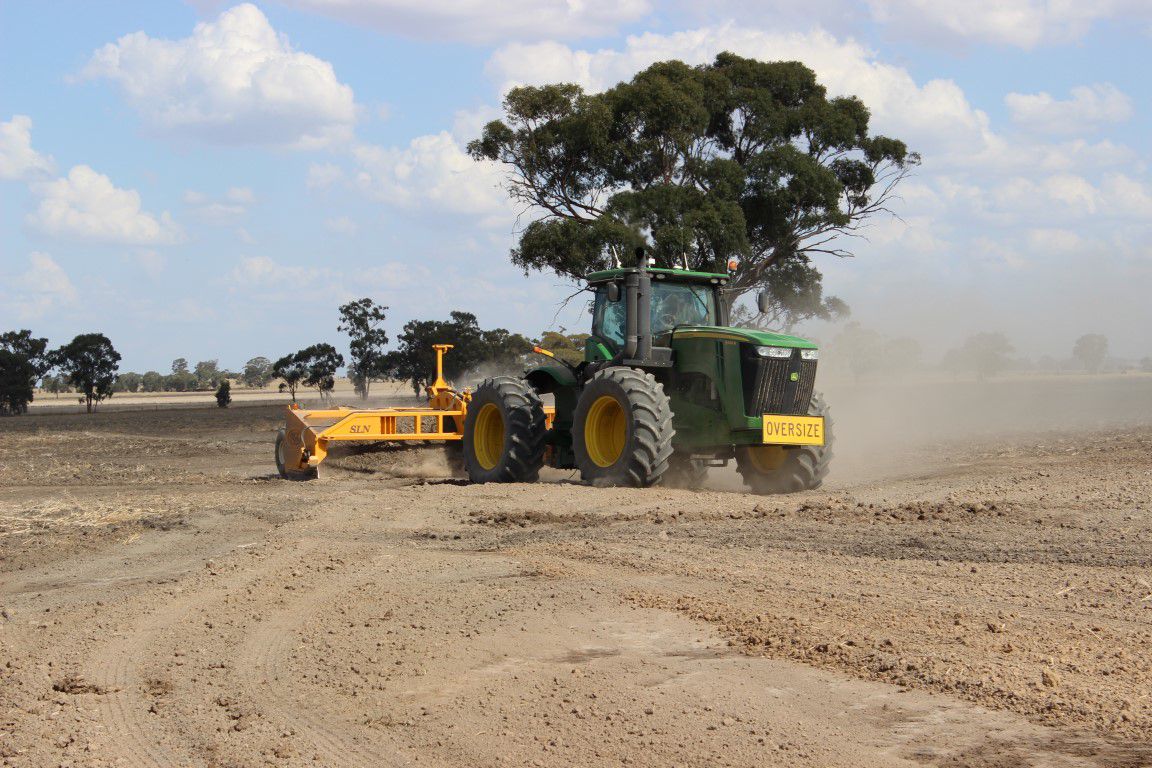

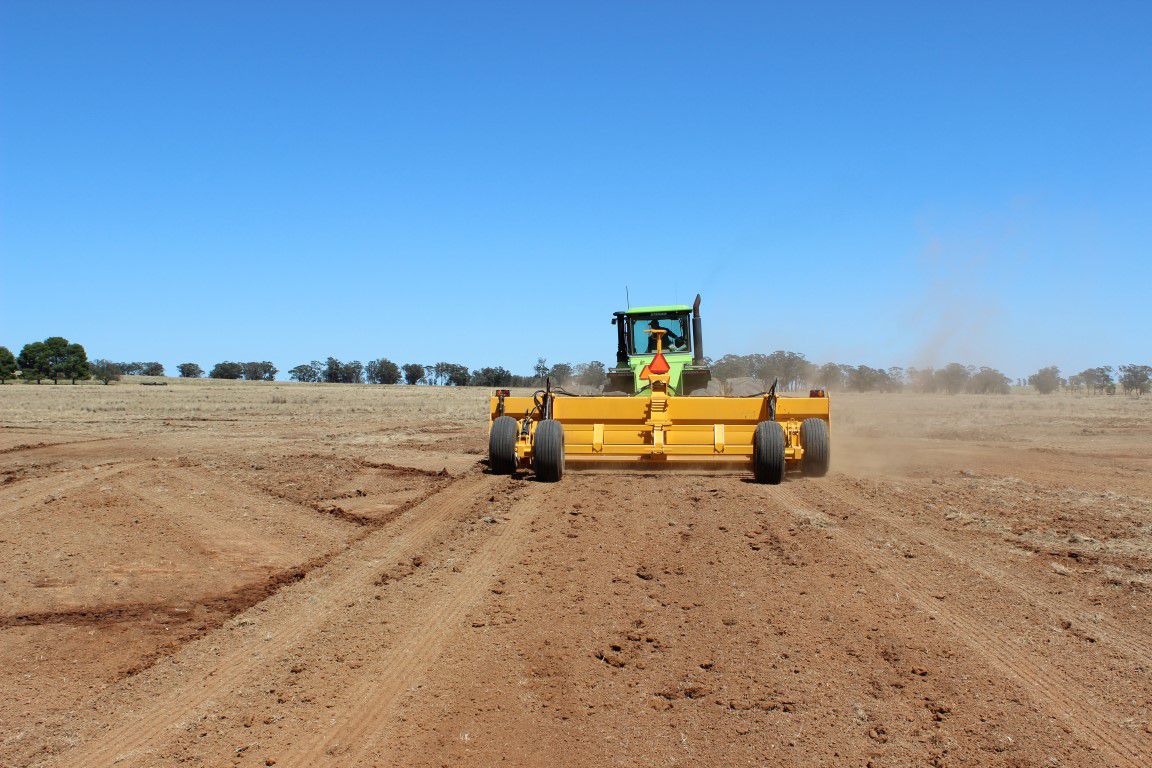

SLN: 18' - 24' (5.5m - 7.3m)

Specifications

Model	Width	HP Req'd	Capacity	Weight	Rear Axle
HLL-08	2.4 m	40 - 110	0.85 m3	840 kg	Single
HLL-10	3.0 m	60 - 110	1.1 m3	850 kg	Single
HLL-12	3.7 m	80 - 110	1.3 m3	900 kg	Single

Model	Width	HP Req'd	Capacity	Weight	Rear Axle
LN-14 G4	4.3 m	150	6.09 m3	4082 kg	Dual Walking
LN-16 G4	4.8 m	200	6.94 m3	4309 kg	Dual Walking
LN-18 G4	5.5 m	250	7.78 m3	4536 kg	Dual Walking

Model	Width	HP Req'd	Capacity	Weight	Rear Axle

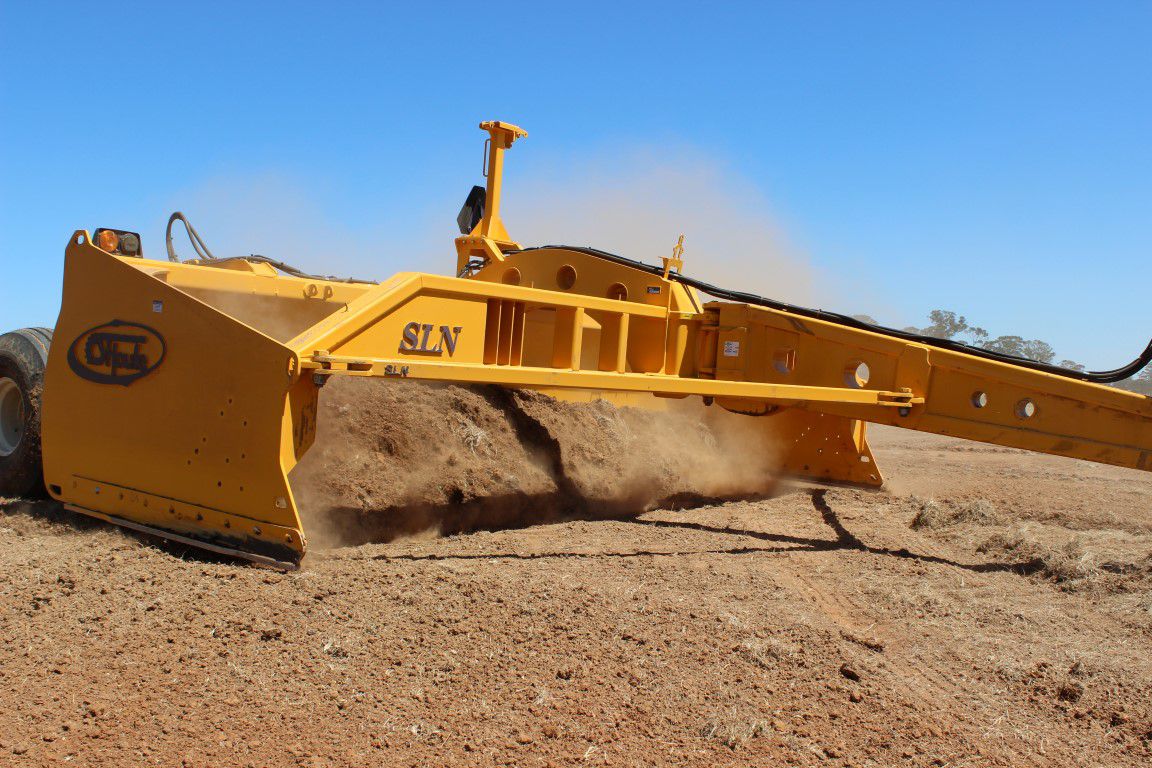

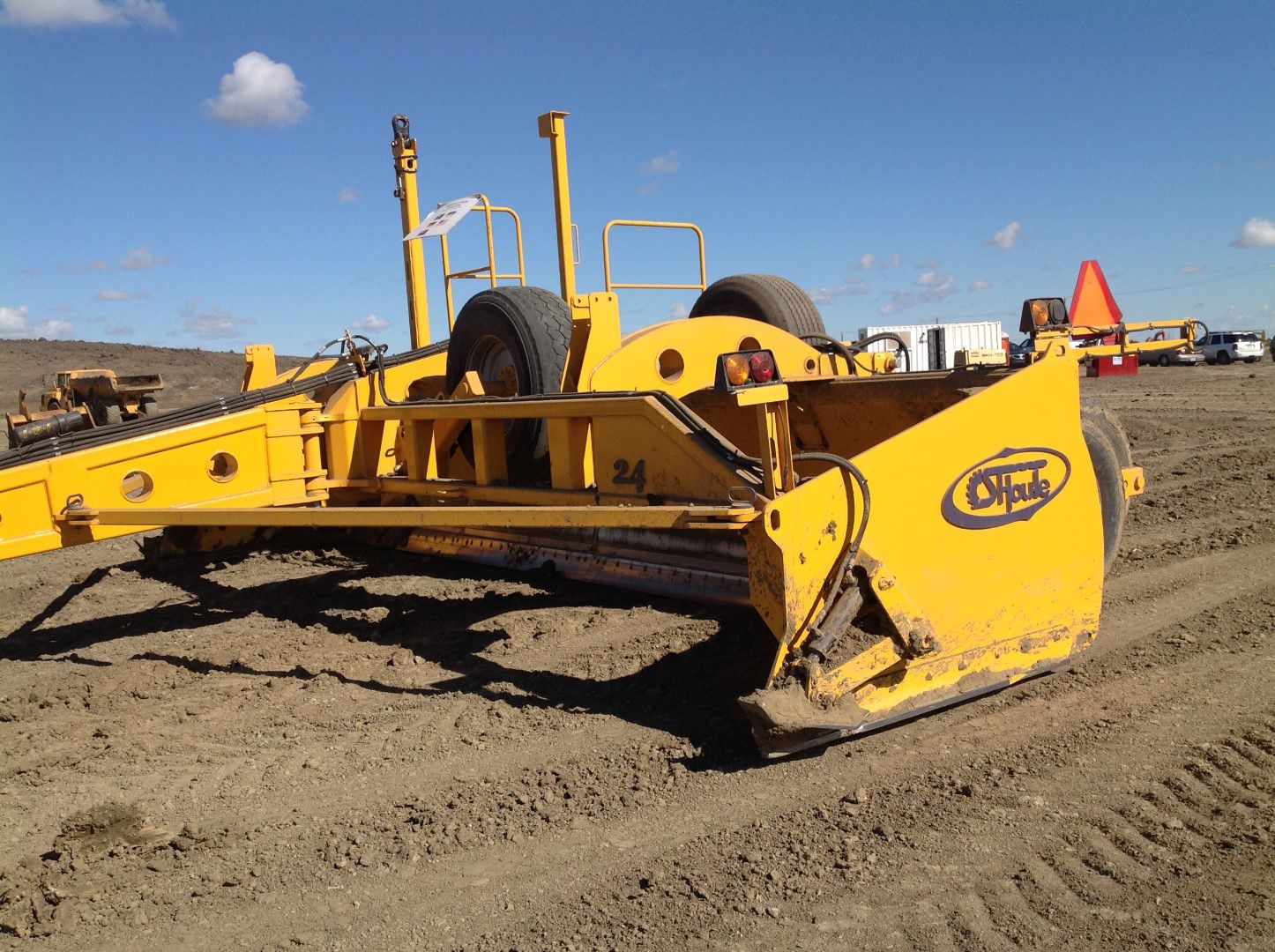

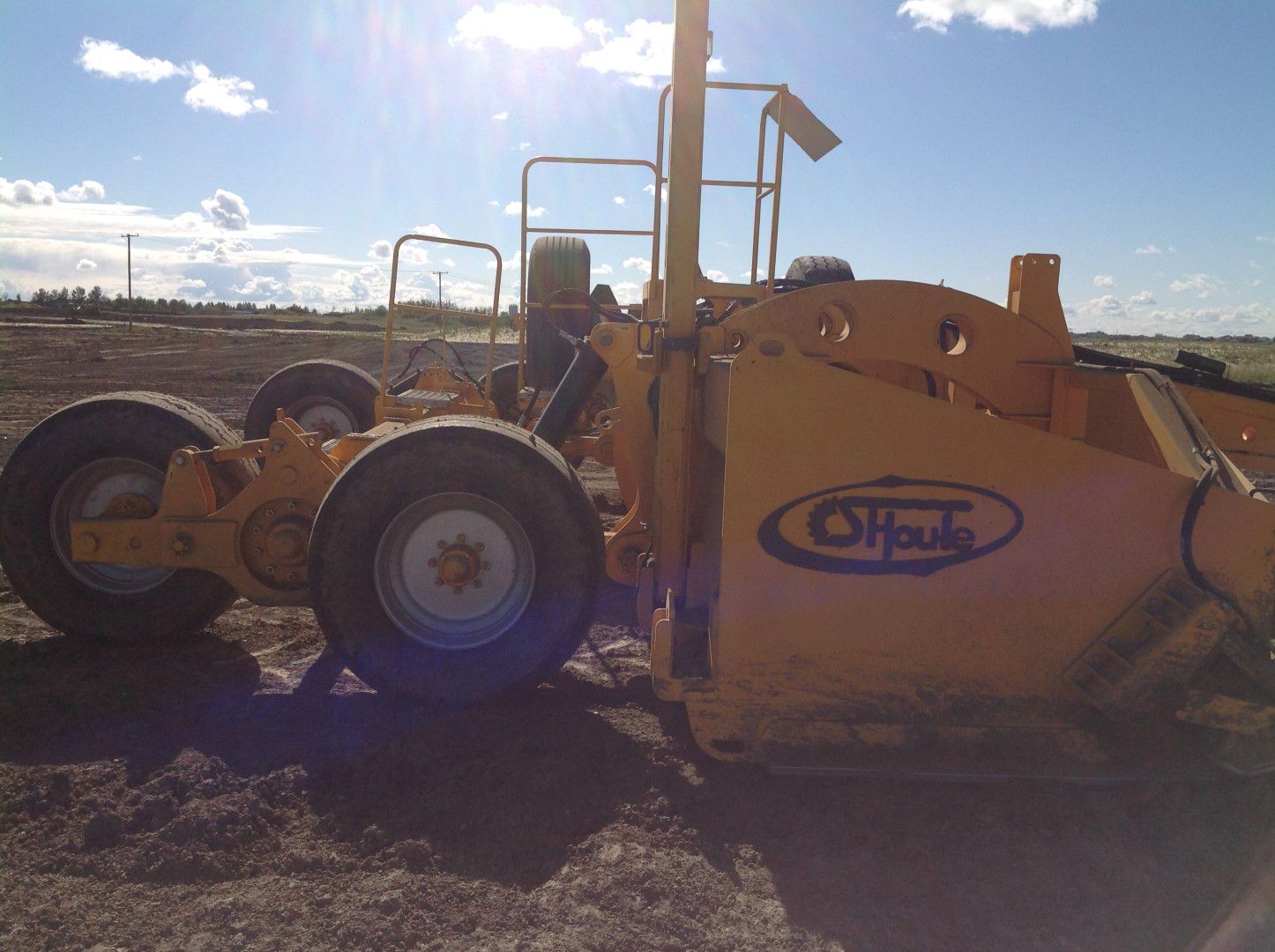

SLN-18 G4	5.5 m	350	11.47 m3	6577 kg	Dual Walking

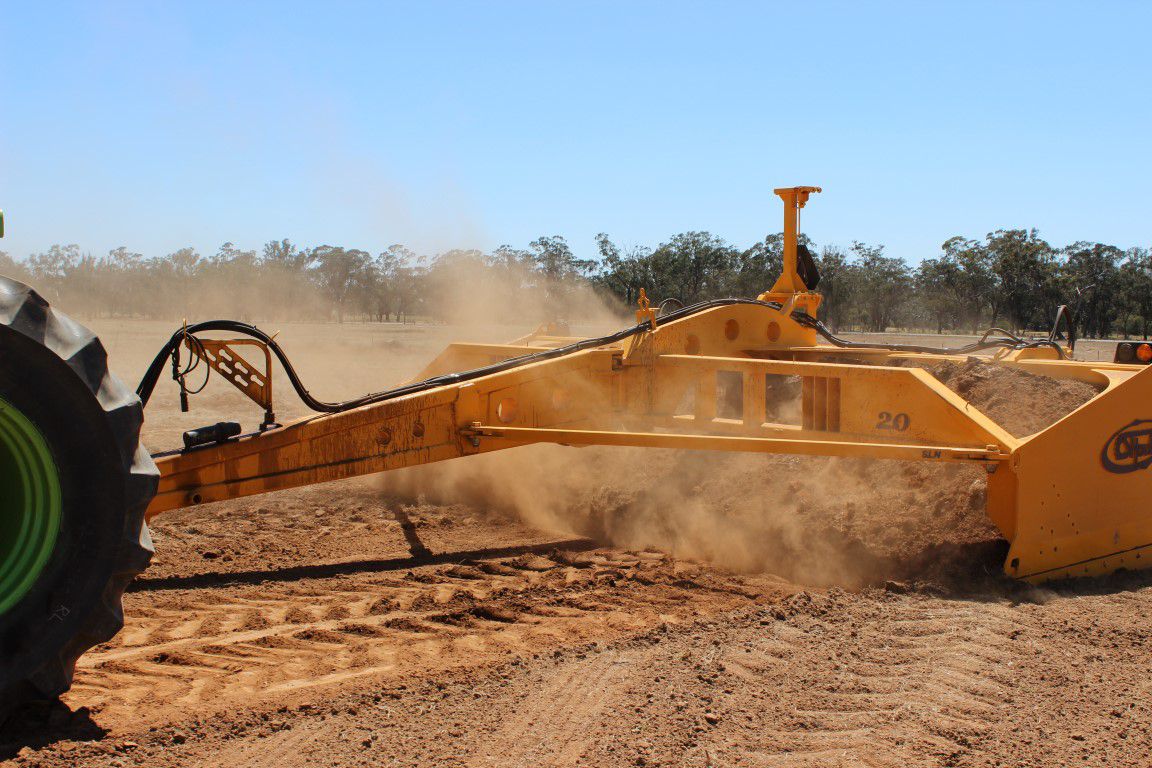

SLN-20 G4	6.0 m	400	12.74 m3	6804 kg	Dual Walking
SLN-24 G4	7.3 m	500	15.29 m3	7258 kg	Dual Walking
