AGTRON Legend Basic WIFI Kit, Double Loop

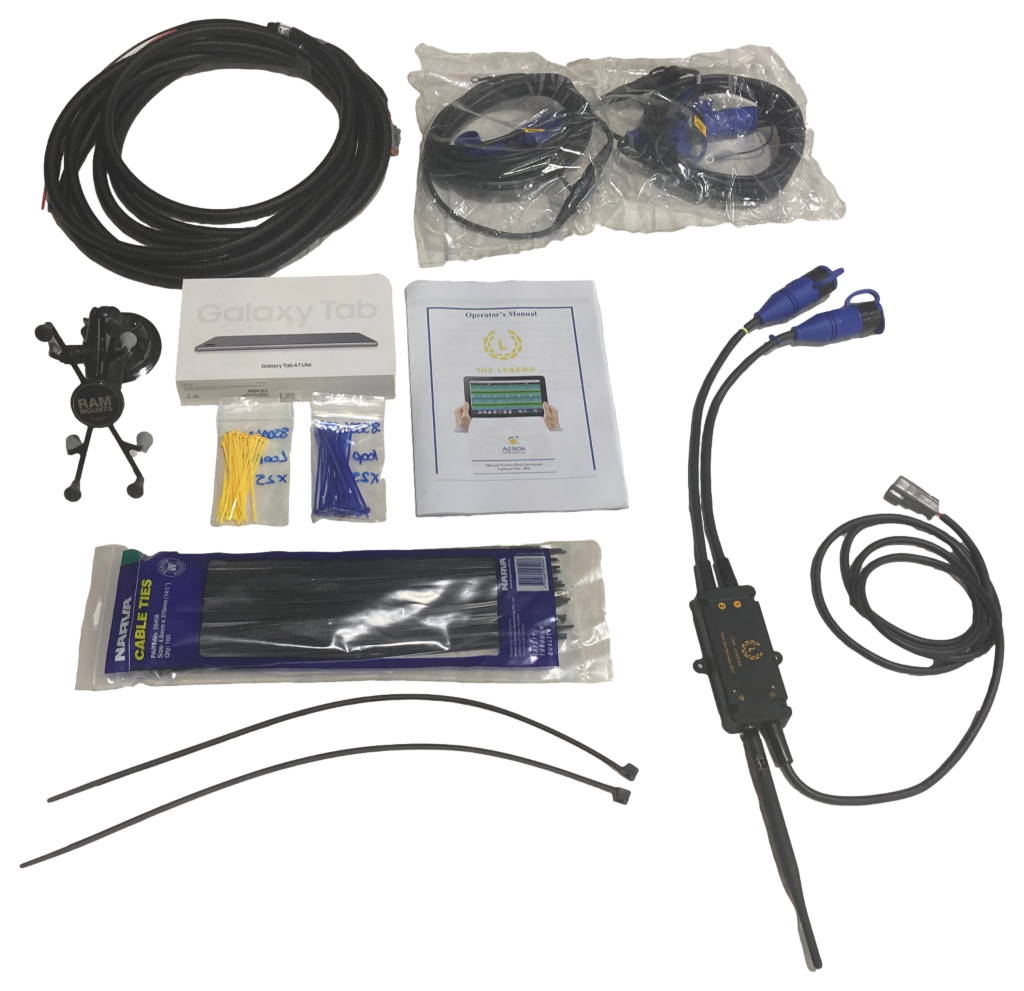

Includes: ECU, antenna, battery harness, Samsung Tablet and Mount, 2x Y-cable
ECU Serial # :
Australian Stock
Contact us for more info

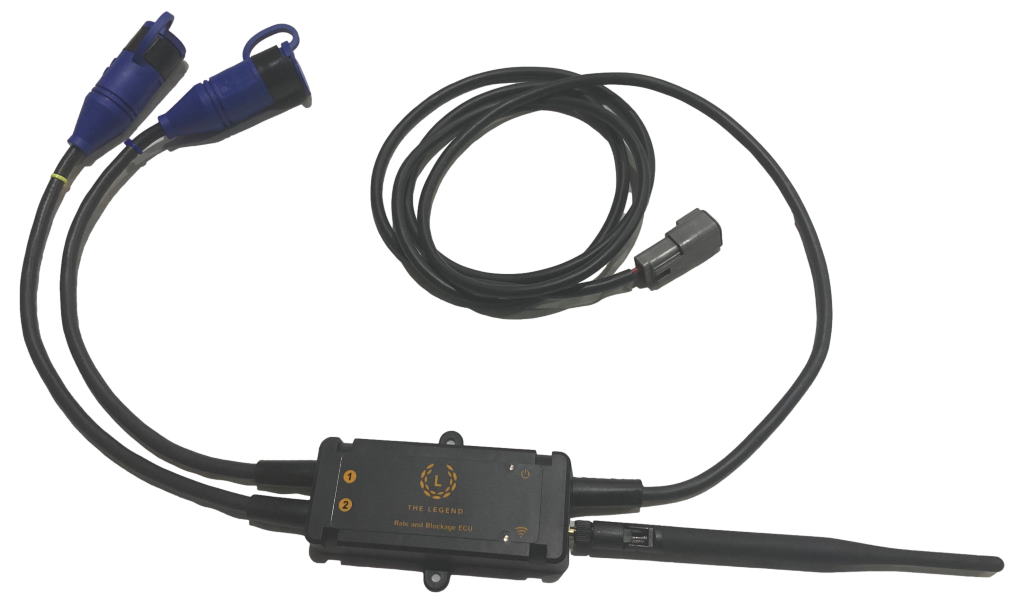

THE LEGEND BASIC ECU
The LEGEND BASIC is the simple way to bring Rate and Blockage monitoring to your drill. Only one tiny module is required. You can have one sensor per tower, or monitor all runs. Adding sensors does not require more boxes, cables or programming.HOW IT WORKS
The seed flow sensors use infrared energy to accurately detect seeds without any impact.
Each seed flow sensor is connected in a loop around the machine with waterproof connections. Each sensor has its own electronics to automatically determine its order in the system. The sensor loop connects to a single module which sends the seed count information gathered by each sensor via WI-FI to an Android tablet.
NON-SECTION CONTROL DRILLS
The LEGEND BASIC can be used with drills having up to 120 seed runs and 120 fertilizer runs. Options are available for a work switch to prevent alarms when the toolbar is lifted. Android tablets provide a GPS speed signal.
SEED FLOW SENSORS
The sensors are available for most common inside diameter seed tubes. Four infrared optical elements detect seed with no impact damage. The elements are adjusted automatically to compensate for fertilizer or seed treatment buildup. The sensor scans for seed 15,000 times a second to improve accuracy.
